Heat Transfer Packages
Custom Engineered Heat Transfer Systems for Industrial Applications
FabPro designs and fabricates custom heat transfer packages that support heating, cooling, and energy transfer across a wide range of commercial and industrial systems.
These systems are built to manage temperature control in demanding environments, ensuring reliable performance for process water, HVAC systems, and industrial applications.
Each package is engineered to meet the exact requirements of the project, including:
- Temperature ranges
- Flow rates
- Pressure requirements
- Fluid types
- Installation constraints
FabPro systems are delivered as fully integrated packages, reducing field installation time and ensuring consistent performance from startup.
Custom Heat Transfer Packages Built by FabPro

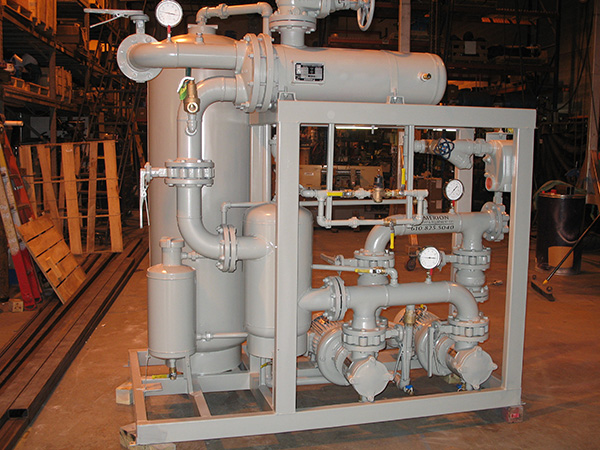

FabPro heat transfer packages are designed as complete system assemblies, combining heat exchangers, pumps, piping, and controls into a single coordinated solution.
Typical system configurations may include:

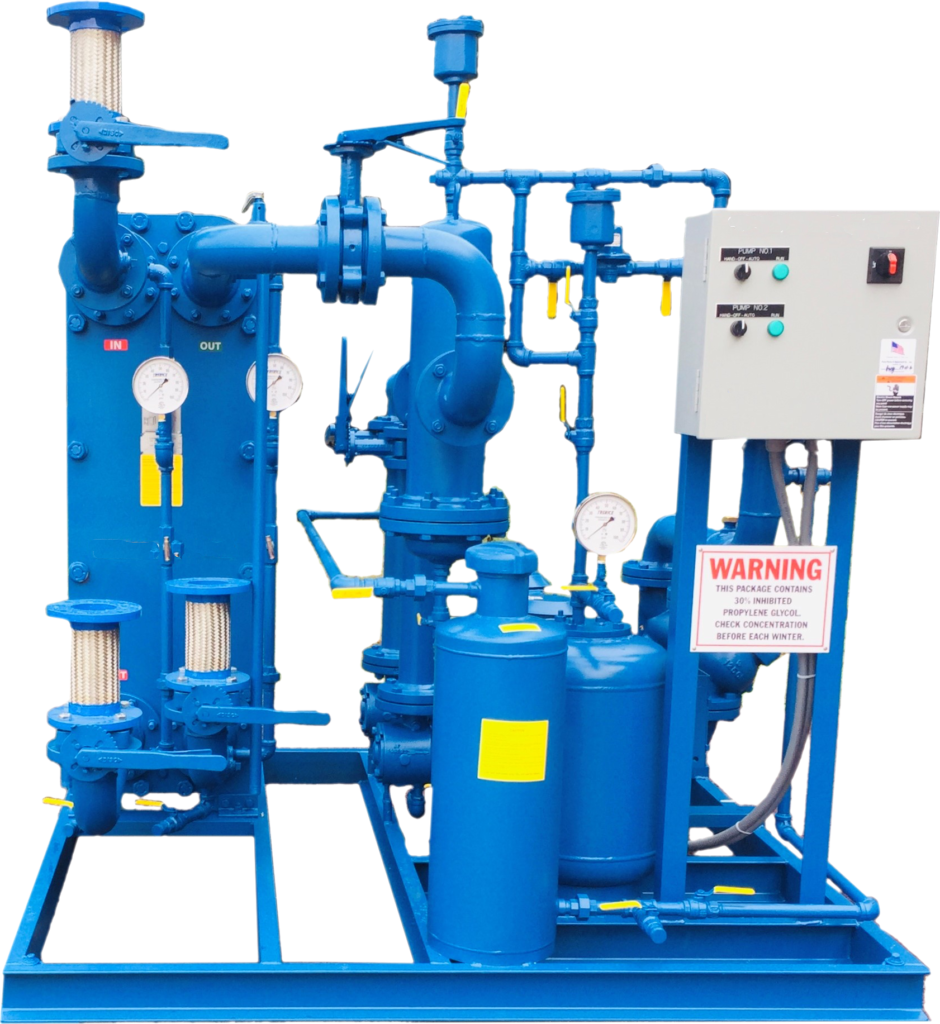

- Plate and frame heat exchanger packages

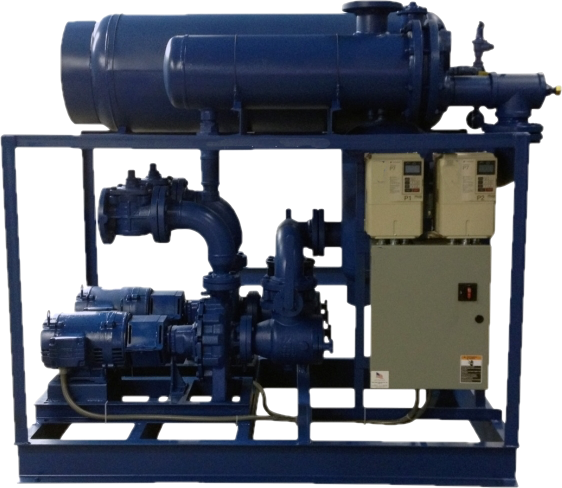

- Shell and tube heat exchanger systems
- Pumped circulation loops

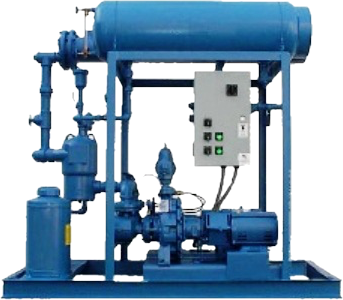

- Skid-mounted heat transfer systems
- Integrated control panels
- Pre-piped and pre-wired assembliess
Each system is designed to transfer thermal energy efficiently while maintaining separation between fluid streams, a fundamental requirement in most industrial processes.
What Is a Heat Transfer Package?
FabPro systems can be engineered to meet a wide range of performance requirements.
A heat transfer package is a complete system built around a heat exchanger, designed to transfer heat from one fluid to another without allowing the fluids to mix.
Heat exchangers are widely used across industries to:
- Heat or cool process fluids
- Recover waste heat
- Maintain system temperatures
- Improve energy efficiency
In most designs, thermal energy moves between fluids through a conductive surface such as metal plates or tubes.
Rather than supplying individual components, FabPro integrates all required equipment into a single engineered package, simplifying installation and ensuring system compatibility.
Design Features
- Minimizes installation cost
- Professionally engineered components
- Compact design minimizes floor space
- Single source responsibility
- Factory assembled and tested
Additional Links
-
- Submittal Data
- System Sizing Worksheet (PDF)
- Dimensions
- Specifications
- Operation and Maintenance
Examples shown represent system concepts and engineering capabilities, not standard stocked products
Types of Heat Transfer Systems
FabPro systems can be built around several common heat exchanger designs depending on the application.
Plate and Frame Heat Exchangers
Plate heat exchangers use stacked metal plates to create a large surface area for heat transfer in a compact footprint.
They are commonly used for:
- HVAC systems
- Clean water applications
- Systems requiring compact design
Shell and Tube Heat Exchangers
Shell and tube exchangers use a bundle of tubes inside a pressure vessel, allowing one fluid to pass through the tubes while another flows around them.
These systems are ideal for:
- High-pressure applications
- Industrial processes
- Systems with higher temperatures or particulates
They are one of the most widely used designs in industrial applications due to their durability and flexibility.
Specialized Heat Transfer Systems
Depending on the application, systems may also include:
- Condensing systems
- Cooling systems
- Heat recovery systems
- Closed-loop temperature control systems
Each configuration is selected based on fluid characteristics, temperature range, and system performance requirements.
Major Components of a Heat Transfer Package
A FabPro heat transfer package includes all components required for a complete and functional system.
Heat Exchanger
The heat exchanger is the core of the system, transferring thermal energy between two fluids while keeping them separated.

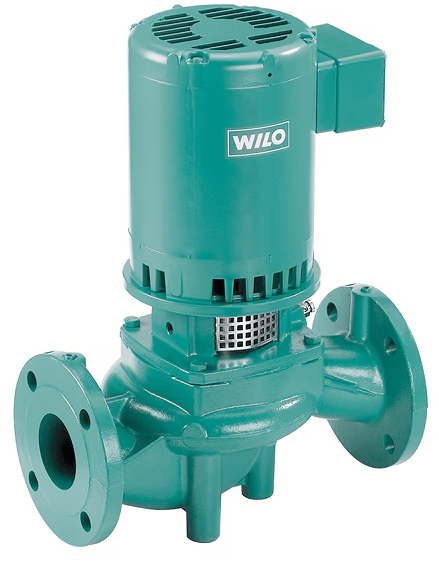

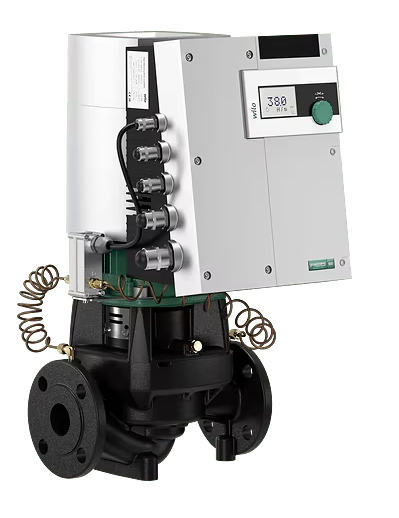

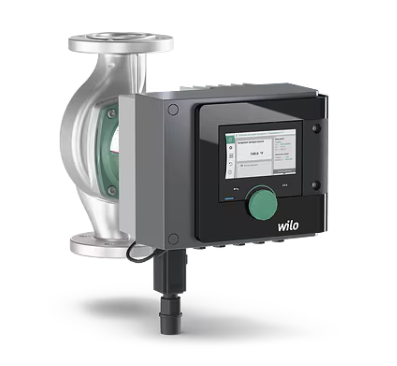

Pumps and Circulation Systems
Pumps are used to move fluid through the system at the required flow rate and pressure. Proper circulation is critical to maintaining consistent heat transfer performance.
Piping and Manifolds
FabPro fabricates custom piping systems to connect all components, ensuring proper flow distribution and system efficiency.
Control Systems
Control panels regulate system operation, monitor temperatures, and adjust flow rates to maintain target performance.
Valves and Safety Components
Systems may include:
- Isolation valves
- Control valves
- Pressure relief valves
- Temperature sensors
- Flow monitoring devices
These components ensure safe and reliable operation.
Applications for Heat Transfer Packages
Heat transfer systems are used across a wide range of industries where temperature control is critical.
Common applications include:
- HVAC and mechanical systems
- Industrial process heating and cooling
- Domestic hot water systems
- Heat recovery systems
- Energy and utility systems
Heat exchangers play a critical role in improving system efficiency by transferring energy that would otherwise be wasted.
Choosing the Right Heat Transfer Package
Selecting the right system depends on several key project factors:
- Required heating or cooling capacity
- Fluid type and properties
- Temperature range
- Pressure requirements
- Available installation space
- Maintenance and service access
FabPro works with engineers and contractors to ensure each system is properly designed for its intended application.
Engineered for Your Application
FabPro heat transfer packages are built to meet the demands of real-world systems — not generic catalog specifications.
Whether the project requires a compact heat exchanger package or a large custom system, FabPro delivers solutions designed for:
- Reliable thermal performance
- Efficient energy use
- Long equipment life
- Simplified installation and maintenance
Need Help Designing a Heat Transfer System?
Contact the FabPro team to discuss your application and system requirements.
