Packaged Circulating Systems
Custom Engineered Fluid Circulation Systems for HVAC and Industrial Applications
FabPro designs and fabricates packaged circulating systems that move water and other fluids through heating, cooling, and process systems.
These systems are used to maintain consistent flow in applications where controlled circulation is critical to system performance, including HVAC loops, process water systems, and thermal distribution networks.
Each system is engineered to meet the specific requirements of the project, including:
- Flow rates
- Head pressure requirements
- System demand and load conditions
- Fluid type (water, glycol, or process fluids)
- Installation and space constraints
FabPro systems are delivered as fully integrated packages, reducing field installation time and ensuring reliable operation from startup.
Custom Circulating Systems Built by FabPro
FabPro circulating systems are designed as complete system assemblies, combining pumps, piping, and controls into a single coordinated solution.
Typical system configurations may include:
- End suction or inline centrifugal pump systems
- Duplex or triplex pump arrangements
- Variable speed pump systems (VFD-driven)
- Primary and secondary loop systems

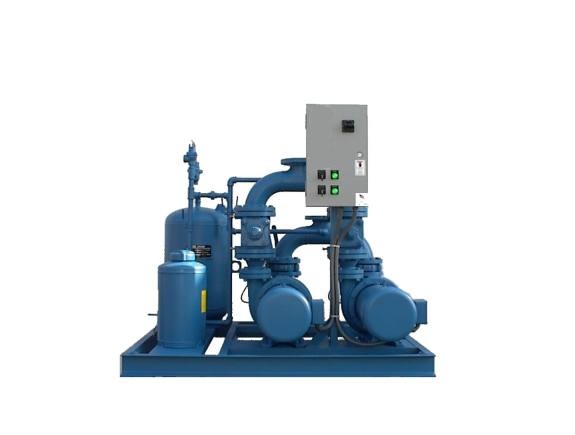

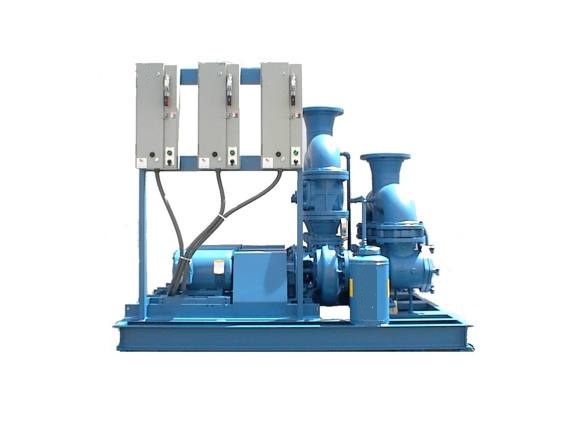

- Skid-mounted circulating pump packages
- Integrated control panels
- Pre-piped and pre-wired assemblies
Each system is designed to maintain consistent fluid movement, ensuring proper temperature control and system balance.
What Is a Packaged Circulating System?
A packaged circulating system is a complete pump system designed to move fluid continuously through a closed or open loop.
In most applications, circulating systems are used to move heated or chilled water throughout a building or process system. Pumps maintain flow through piping networks, allowing energy to be transferred where it is needed.
Rather than assembling pumps, piping, and controls in the field, FabPro integrates all required components into a single engineered package, improving system coordination and reducing installation risk
Design Features
- Minimizes installation cost
- Professionally engineered components
- Compact design minimizes floor space
- Single source responsibility
- Factory assembled and tested
Additional Links
Major Components of a Circulating System
A FabPro circulating system includes all components required for a complete and operational system.
Pumps
Centrifugal pumps are selected based on required flow and head conditions. Systems may include multiple pumps for redundancy or load balancing.
Piping and Headers
Custom-fabricated piping connects all system components and ensures proper flow distribution throughout the system.
Valves and Flow Control Devices
Systems may include balancing valves, isolation valves, and flow control devices to regulate system performance and allow for maintenance.
Control Systems
Control panels manage pump operation, including staging, variable speed control, and system monitoring.
Instrumentation
Pressure gauges, temperature sensors, and flow meters provide system visibility and help maintain proper operation.
Applications for Packaged Circulating Systems
Circulating systems are used in a wide range of applications where fluid movement is required for heating, cooling, or process control.
Common applications include:
- HVAC heating and chilled water systems
- Boiler and chiller loops
- Industrial process systems
- Heat transfer and thermal distribution systems
- District energy systems
These systems are critical for maintaining consistent temperatures and ensuring efficient system operation.
Designed for Real-World Installation
FabPro circulating systems are built with installation and long-term operation in mind.
Systems can be delivered as factory-assembled packages, providing:
- Reduced field labor
- Faster installation timelines
- Factory-tested performance
- Simplified coordination between trades
- Compact system layouts
This approach improves consistency and reduces the risk of installation issues on complex projects.
Choosing the Right Circulating System
Selecting the correct system depends on several key project factors:
- Required flow rate and system demand
- Total dynamic head (TDH)
- Type of fluid and operating conditions
- System layout and loop configuration
- Available installation space
- Maintenance and service access
FabPro works with engineers and contractors to ensure each system is properly designed for both performance and installation requirements.
Engineered for Your Application
FabPro circulating systems are built for real-world performance, not generic specifications.
Each system is designed to deliver:
- Reliable fluid circulation
- Consistent system performance
- Efficient energy use
- Long equipment life
- Simplified installation and maintenance
Whether the application requires a compact pump package or a large multi-pump system, FabPro delivers a fully integrated solution.
Need Help Designing a Circulating System?
Contact the FabPro team to discuss your application and system requirements.
