Case Study: NARTP
Rooftop Pump Package | Outdoor Enclosure Design
| Project Type | Commercial HVAC System |
|---|---|
| System | Duplex Pump System (Estimated) |
| Pump Basis | Centrifugal Pumps |
| Fabrication | Pump package, enclosure, piping integration |
| Key Requirement | Rooftop Installation with Weather Protection |
| Manufacturer | FabPro Systems |
FabPro designed and fabricated a custom enclosed pump system to support a rooftop dry cooler installation for a new building project.
Engineering Challenge
The project required a pump system to support a dry cooler, but the engineer wanted to avoid installing equipment in the basement mechanical room.
The system needed to be installed on the roof and designed to:
- Operate in outdoor conditions
- Integrate with the dry cooler system
- Meet system flow and head requirements
- Maintain reliability in a fully enclosed structure
This created additional challenges related to system protection, coordination, and installation.
FabPro Solution

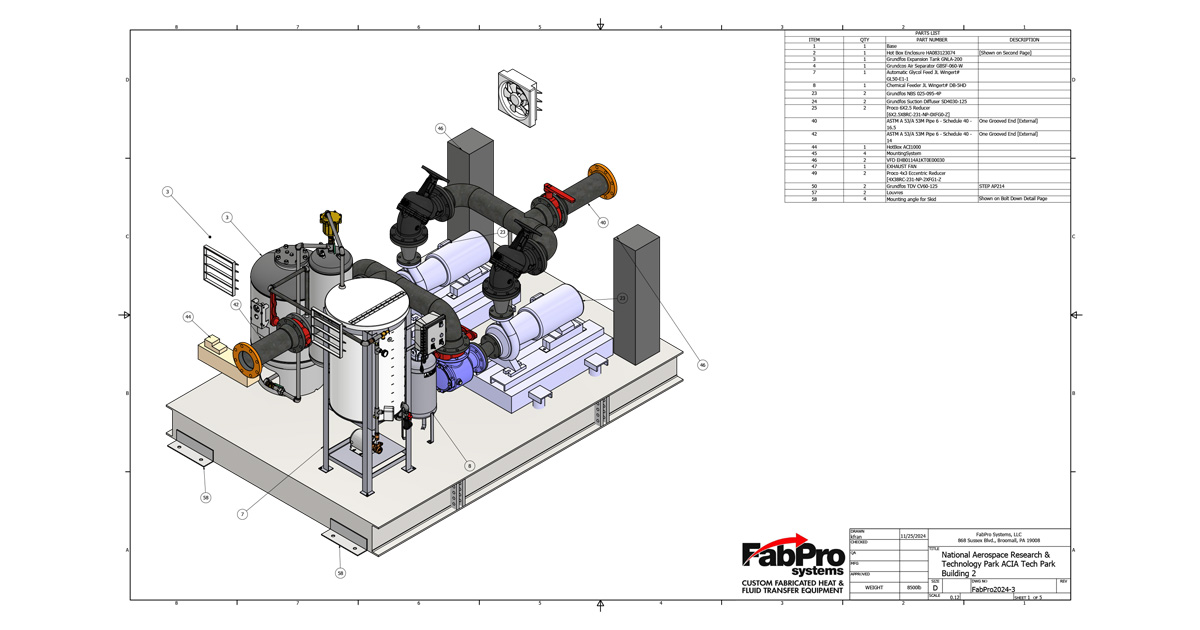

FabPro designed and fabricated a custom enclosed packaged pump system engineered specifically for rooftop installation.
The system was paired with an Evapco dry cooler and designed using project data provided by Energy Transfer Solutions and the consulting engineer.
Key elements included:
- Pumps sized to meet system flow and head requirements
- A fully enclosed structure for outdoor rooftop conditions

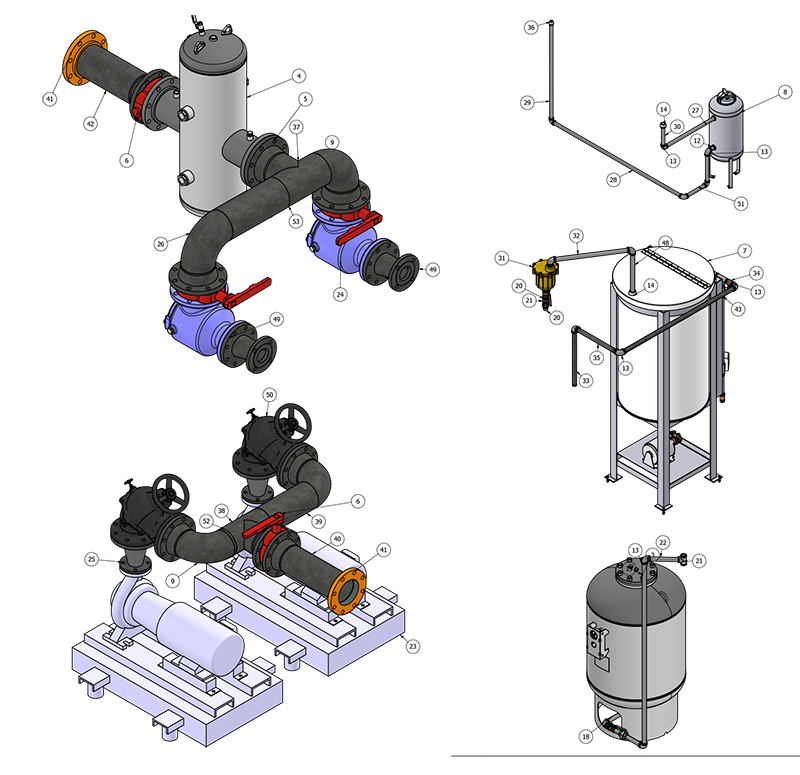

- Integrated piping and system layout
- Packaged design to reduce field assembly and simplify installation
The result was a complete system that could be installed directly on the roof.
FabPro’s Role
FabPro was responsible for the design and fabrication of the pump package, including:
- Pump selection and system sizing

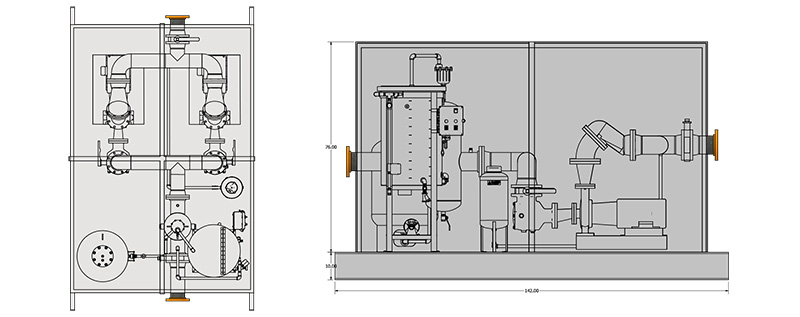

- Enclosure design for rooftop conditions
- Fabrication of the packaged system
- Coordination with the engineer
- Collaboration with the contractor
- Support during startup and operation
FabPro worked with all project stakeholders to ensure the system met performance and installation requirements.
Challenges & Resolution
After installation, a leak was identified in the enclosure roof.
FabPro responded immediately by:
- Sending technicians to the site
- Inspecting the enclosure
- Completing repairs to resolve the issue
The problem was addressed quickly, minimizing disruption to the project.
Project Results
The completed system delivered:
- A fully operational rooftop pump package
- Proper integration with the dry cooler system
- Elimination of the need for basement installation
- Simplified installation and system layout
The packaged approach allowed the project team to meet both design and installation goals.
Need a Custom Pump Package?
FabPro Systems designs and fabricates custom pump assemblies, skid packages, and mechanical system bases for commercial and industrial applications.
If your project requires a custom fabricated system or BAA-compliant solution, contact our team to discuss your requirements.
